DECVS Dedicated Low-Output Balanced MC Transformer System
DECVS is a dedicated balanced moving-coil transformer system developed for low-output, low-impedance cartridges
requiring fixed and tightly controlled operating conditions.
The architecture is optimized around a defined transformer structure rather than user-selectable configurations or multiple signal paths.
Designed as a reference-level interface, DECVS focuses on structural stability, predictable signal behaviour,
and controlled energy transfer throughout the transformation process.
By eliminating switching networks and alternative operating modes, the system maintains
a consistent electrical environment between cartridge and phono stage.
The result is a transformer platform optimized for stable operation, channel symmetry,
and repeatable performance with demanding low-output moving-coil cartridges.
Key Features
Dedicated low-output MC architecture optimized for fixed operating conditions.
True balanced transformer processing from floating RCA input stage.
Matched transformer pairs operating in fully balanced configuration.

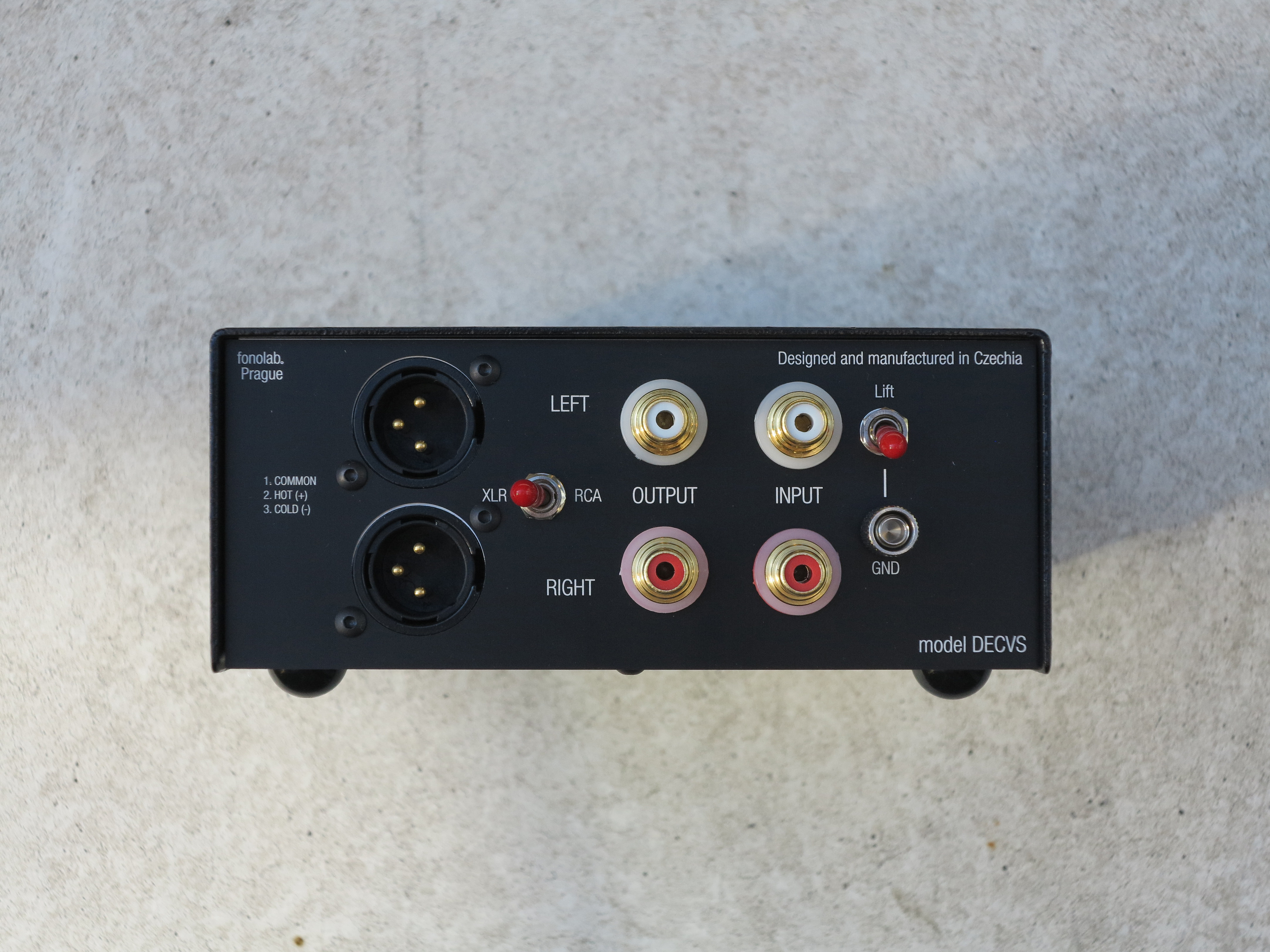

Both RCA and XLR outputs for flexible phono stage integration.
Isolated chassis grounding with ground-lift management.
Rigid steel chassis for mechanical stability and magnetic shielding.
Specifications:
Input impedance: 0-4 Ohms
Output impedance: 4k Ohms
Frequency response: 10Hz to 100kHz (+-1.0dB)
Channel separation: more than 80dB (20Hz–50kHz)
Ratio: 1:36
Phase characteristics: Within 10° (20Hz–50kHz)
Dimensions WxDxH: 155 x 215 x 70 mm
Weight: 2,1 kg
Built on the universal FUCHS chassis platform, DECVS combines compact dimensions with optimized connector layout and refined grounding architecture for complex analog installations.
For specialized system integration or dedicated configurations, please feel free to Contact Us directly.
